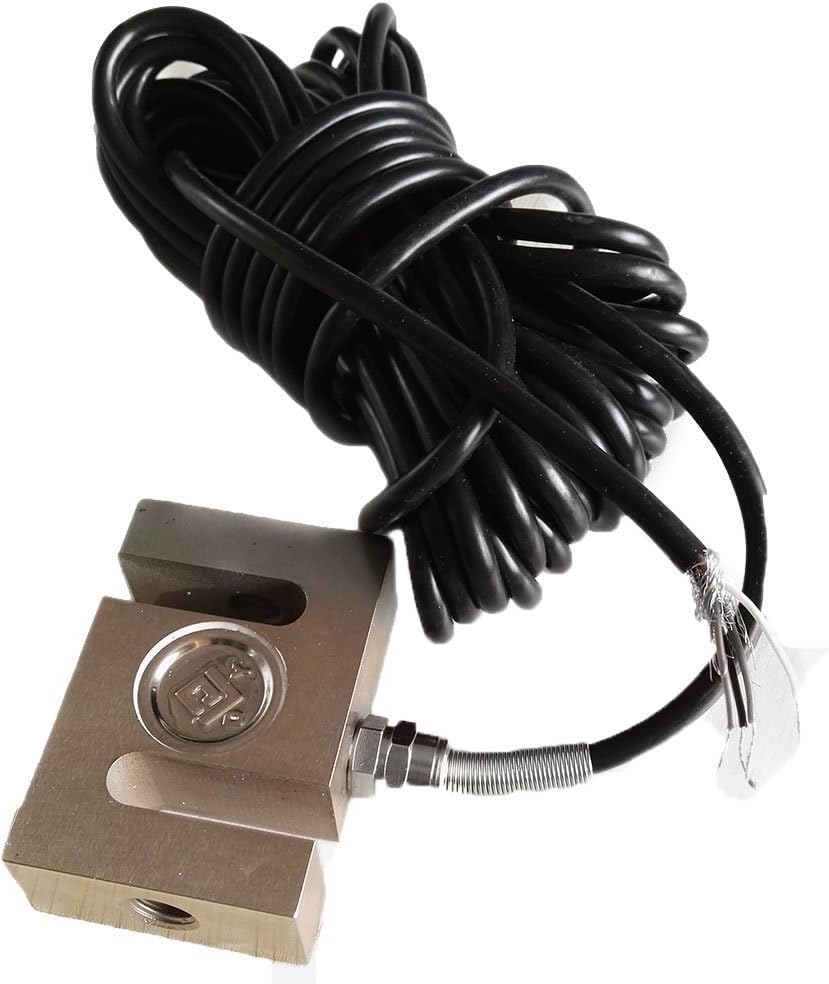

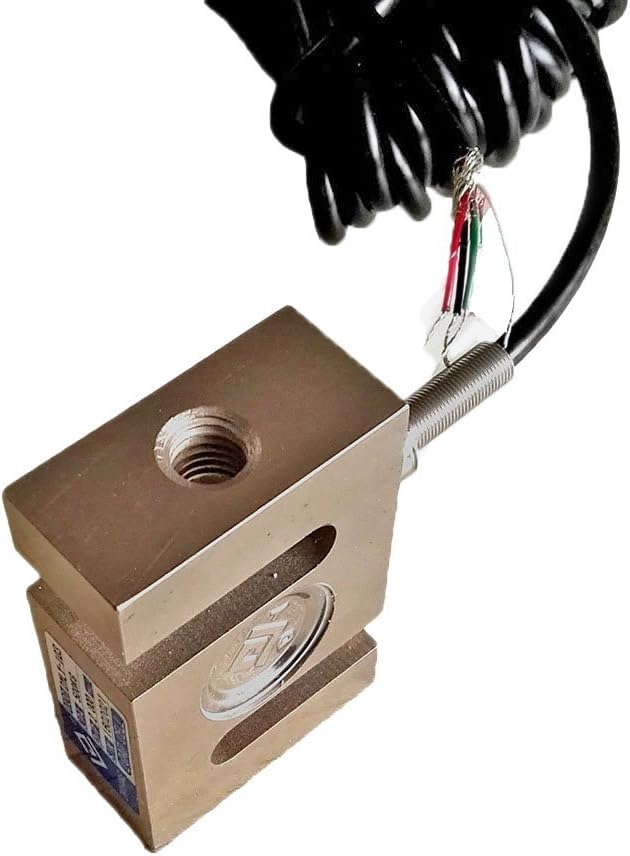

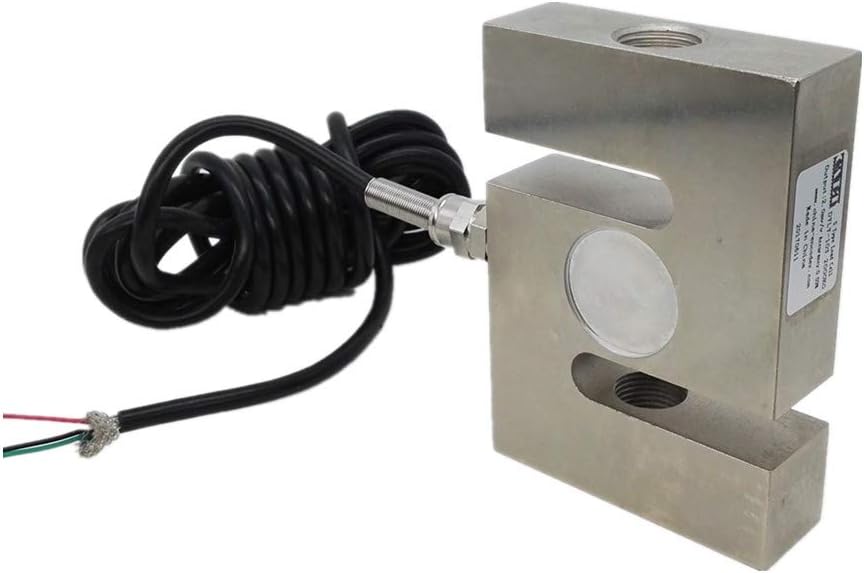

S-type Load Cell Sensor with Cable 3T D872946
Sale price
$13.50
Regular price $55.48
Skip to product information
Tension and compression both can be used
High accuracy with good stability
Hermetically welded/sealed by adhesive inside
Oil-proof, waterproof
material: alloy steel

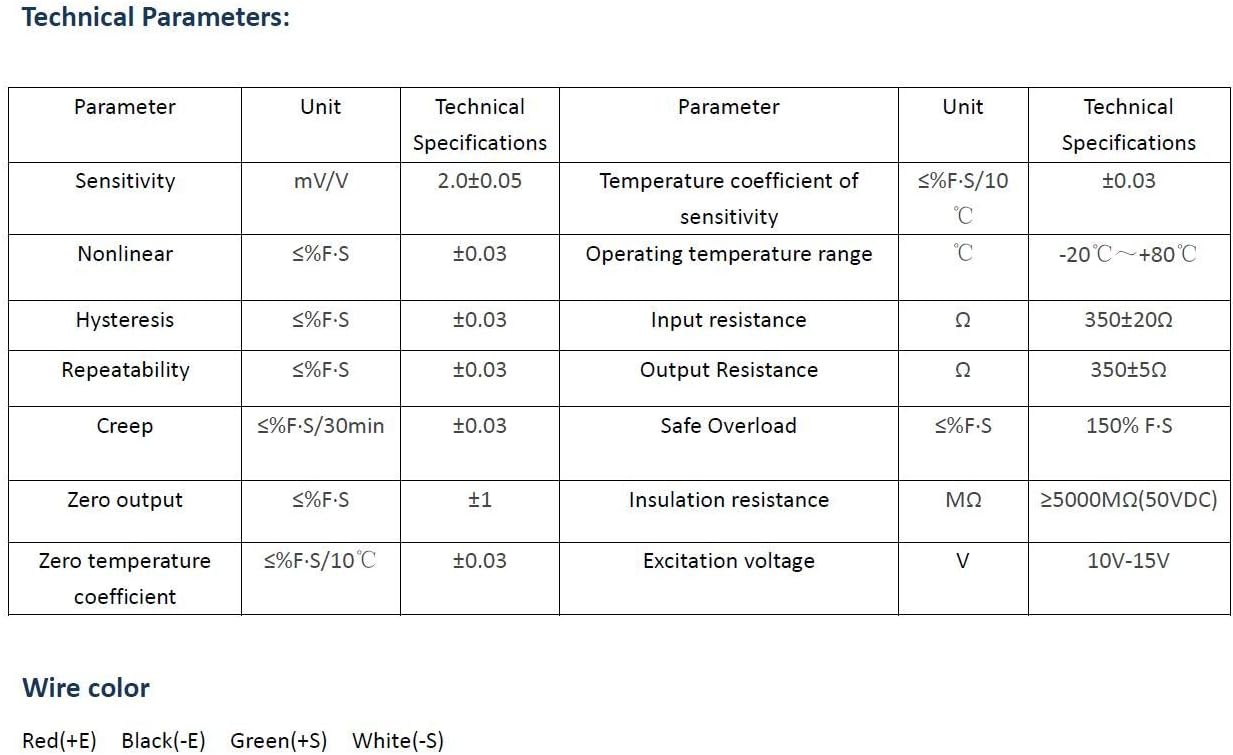

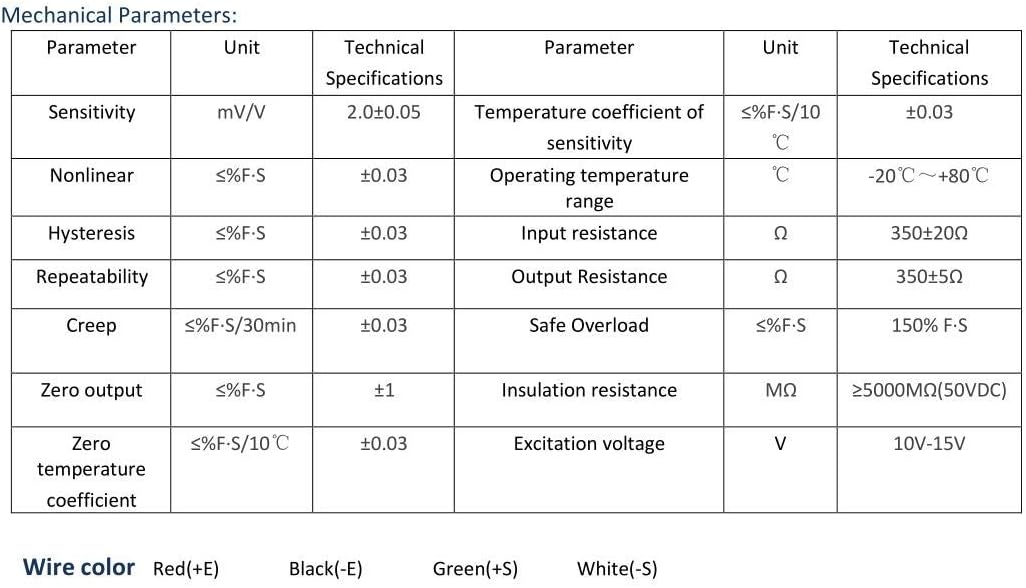

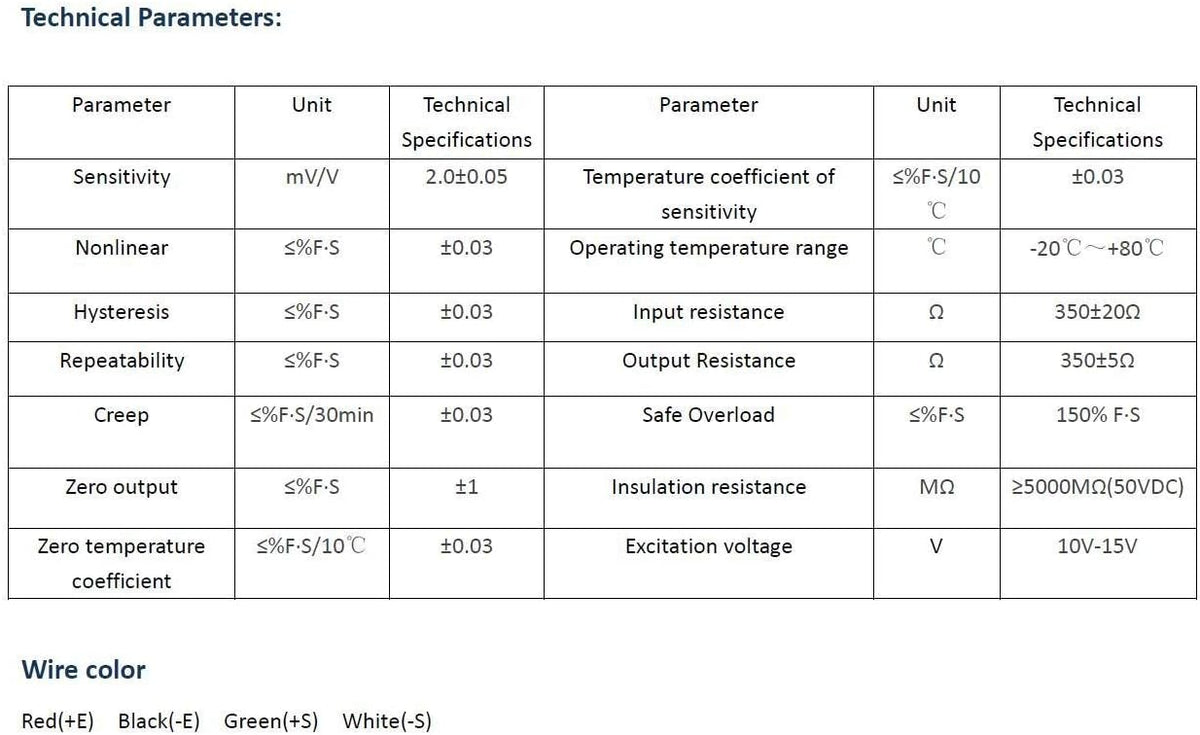

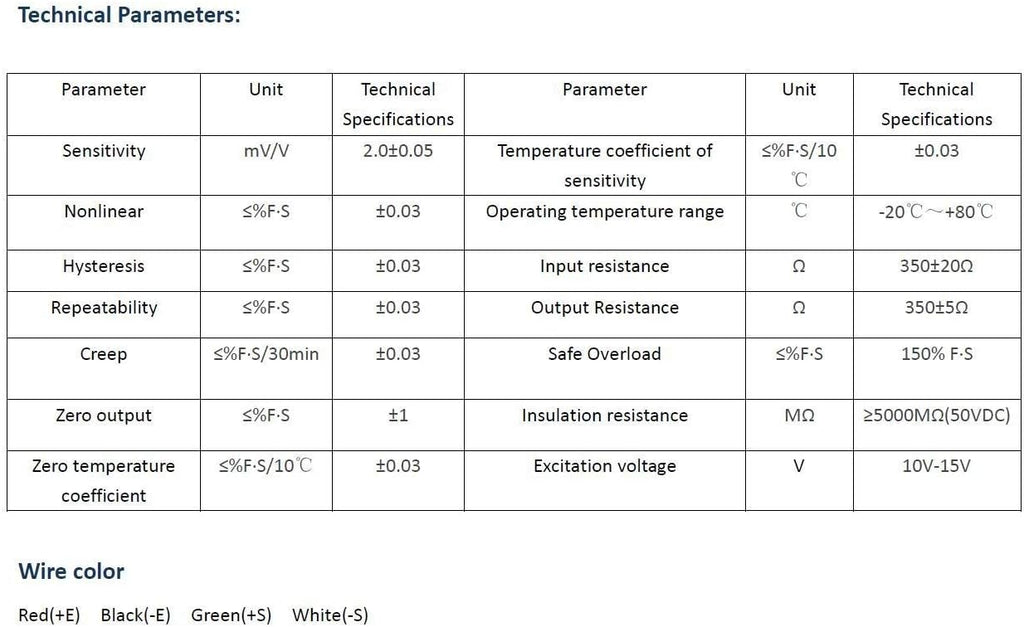

Sensitivity�?.0±0.05mV/V
Nonlinear：�?.03�?F·S
Hysteresis：�?.03�?F·S
Zero output：�?�?F·S
Output resistance: 350 ± 5hm
Insulation resistance: More than 5000megohm �?0VDC�?br /> Input resistance: 365 ± 20 ohm
Excitation voltage�?0V-15V

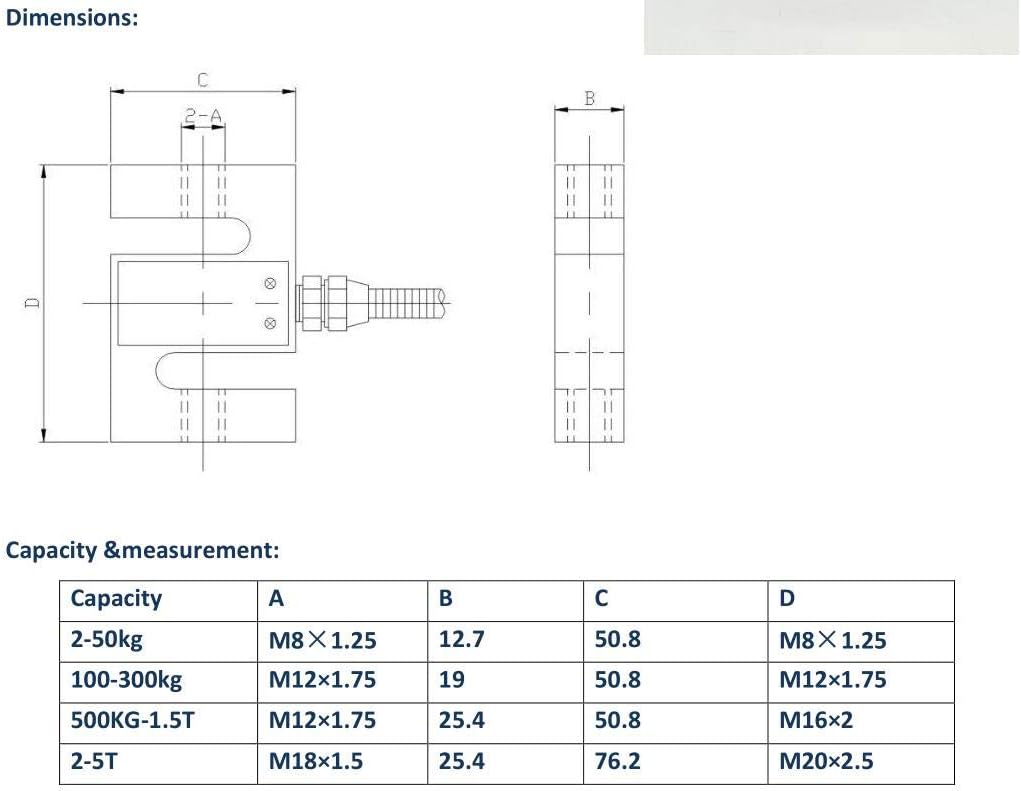

Size:3x0.75x2inch
Weight:638g
Connection mode:
red: power supply +, black: power -, green: signal + white: signal -
Package Included:
1x Load cell
S-type Load Cell Sensor with Cable 3T D872946
Sale price
$13.50
Regular price $55.48
Shipping calculated at checkout.
Tension and compression both can be used
High accuracy with good stability
Hermetically welded/sealed by adhesive inside
Oil-proof, waterproof
material: alloy steel
Note: The color of the item may vary slightly due to photography and your own computer
Description
The item is made of alloy steel, hermetically welded/sealed by adhesive inside,oil-proof, waterproof and anti-corrosion.Safe and anti-explosive product, can be used in atrocious environment and hazardous areas. It is suitable for crane scale, mechanical conversion scale, hopper scale and other electronic weighing devices.S beam design,tension and/or compression loading possible,easy installation Max capacities:500KgSensitivity�?.0±0.05mV/V
Nonlinear：�?.03�?F·S
Hysteresis：�?.03�?F·S
Zero output：�?�?F·S
Output resistance: 350 ± 5hm
Insulation resistance: More than 5000megohm �?0VDC�?br /> Input resistance: 365 ± 20 ohm
Excitation voltage�?0V-15V
Size:3x0.75x2inch
Weight:638g
Connection mode:
red: power supply +, black: power -, green: signal + white: signal -
Package Included:
1x Load cell
