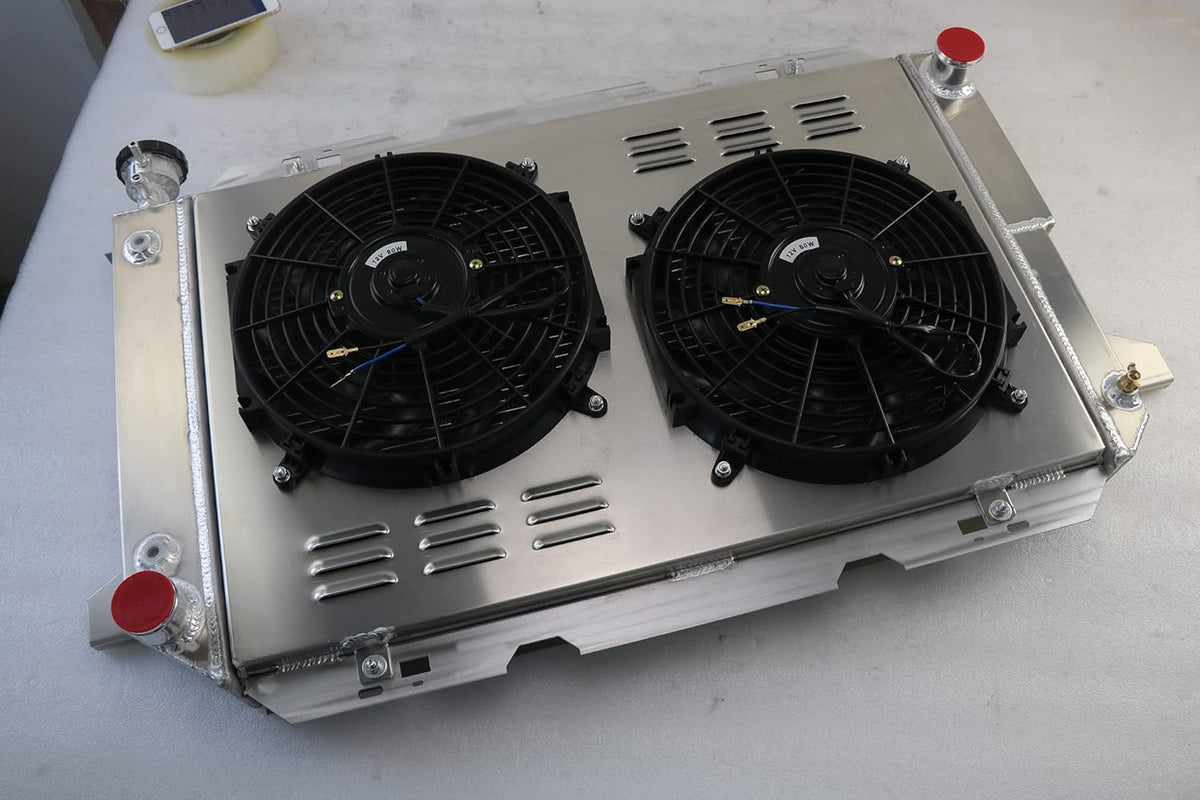

All Aluminum 3 Row Radiator with Shroud Fan Relay Kit S893134
All Aluminum 3 Row Radiator with Shroud Fan Relay Kit S893134
Core Size: 27.6’’H x 17.6’’W x 1.73’’Thickness; Overall Size: 37.7’’ x 20.3’’
Inlet: 1.75’’ at top Passenger Side; Outlet: 1.75’’ at Bottom Driver Side
Build-in Transmission Oil Cooler ( 1/8-27NPT )
Vehicle test-fitted prior to market release, ensuring perfect drop-in fit

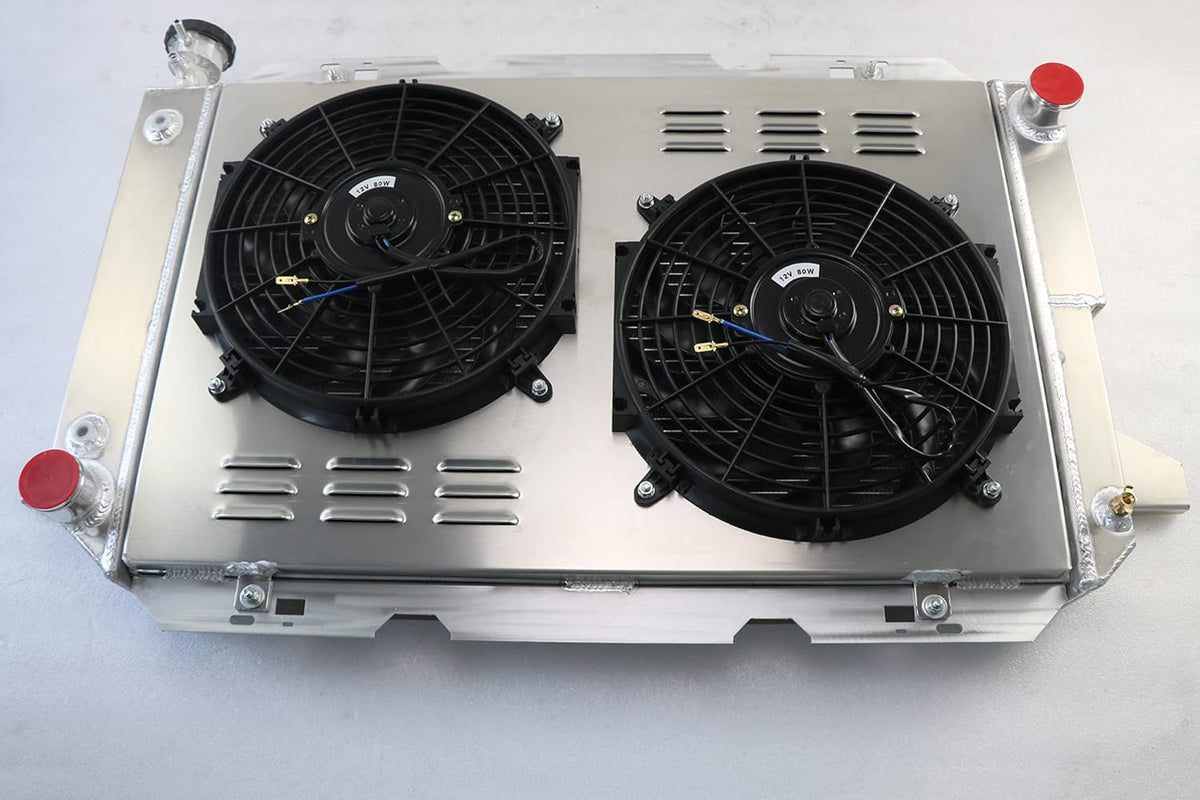

Shroud fan provides protection and extra heat heat dissipation for the radiator

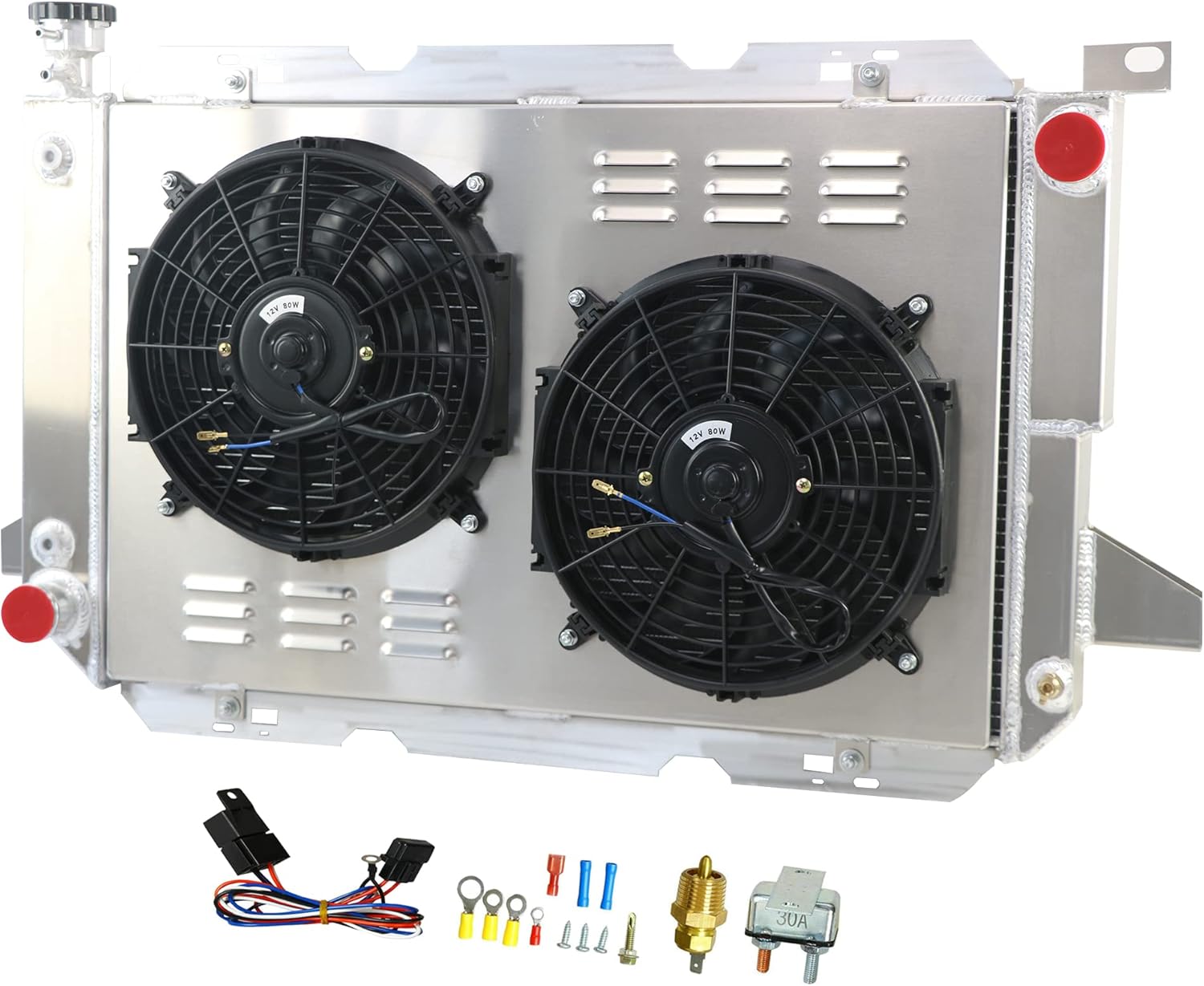

Package Include:
1 X 3 row aluminum radiator
1 X aluminum shroud
2 X 12' fans (includes mounting kits)
1 X thermostat relay kit

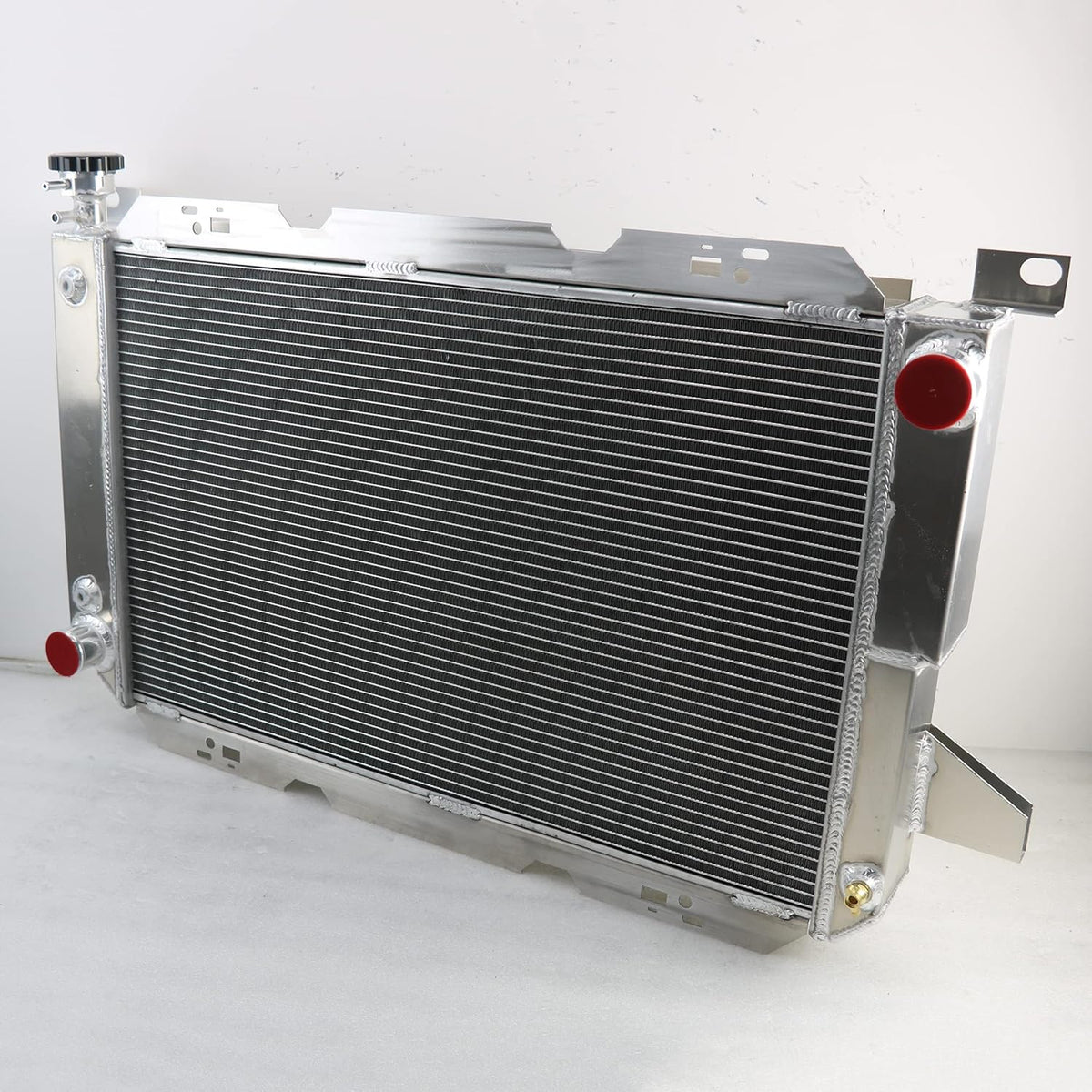

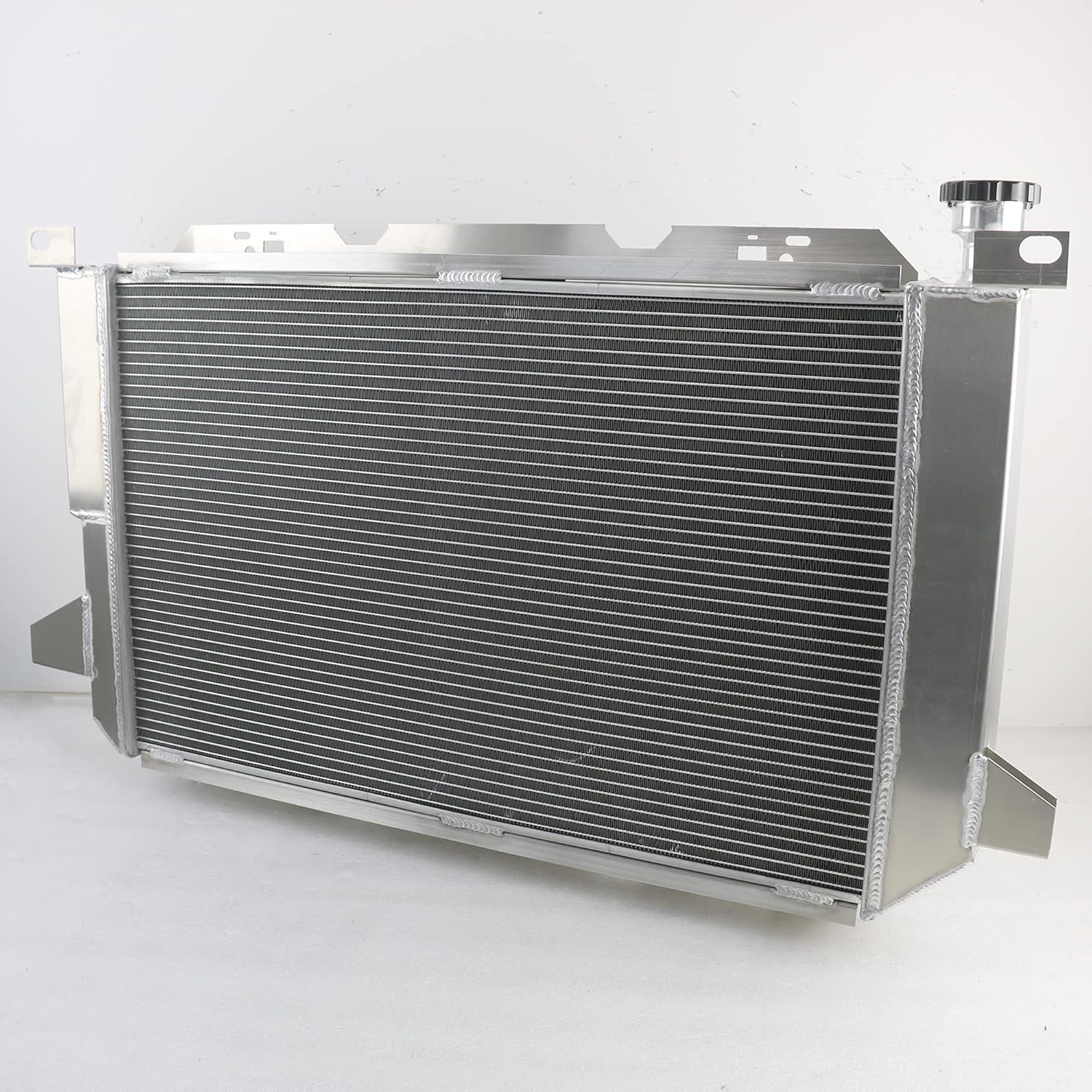

Radiator Specs:
Core Size: 27.6’’H x 17.6’’W
Core Thickness: 1.73’’ (44mm)
Overall Size: 37.7’’ x 20.3’’
Core Material: aluminum
Tank Material: aluminum
Inlet Diameter: 1.75’’
Outlet Diameter: 1.75’’
Inlet Location: top passenger side
Outlet Location: bottom driver side
Flow Type: Crossflow
Engine Oil Cooler: NO
Transmission Oil Cooler: Included

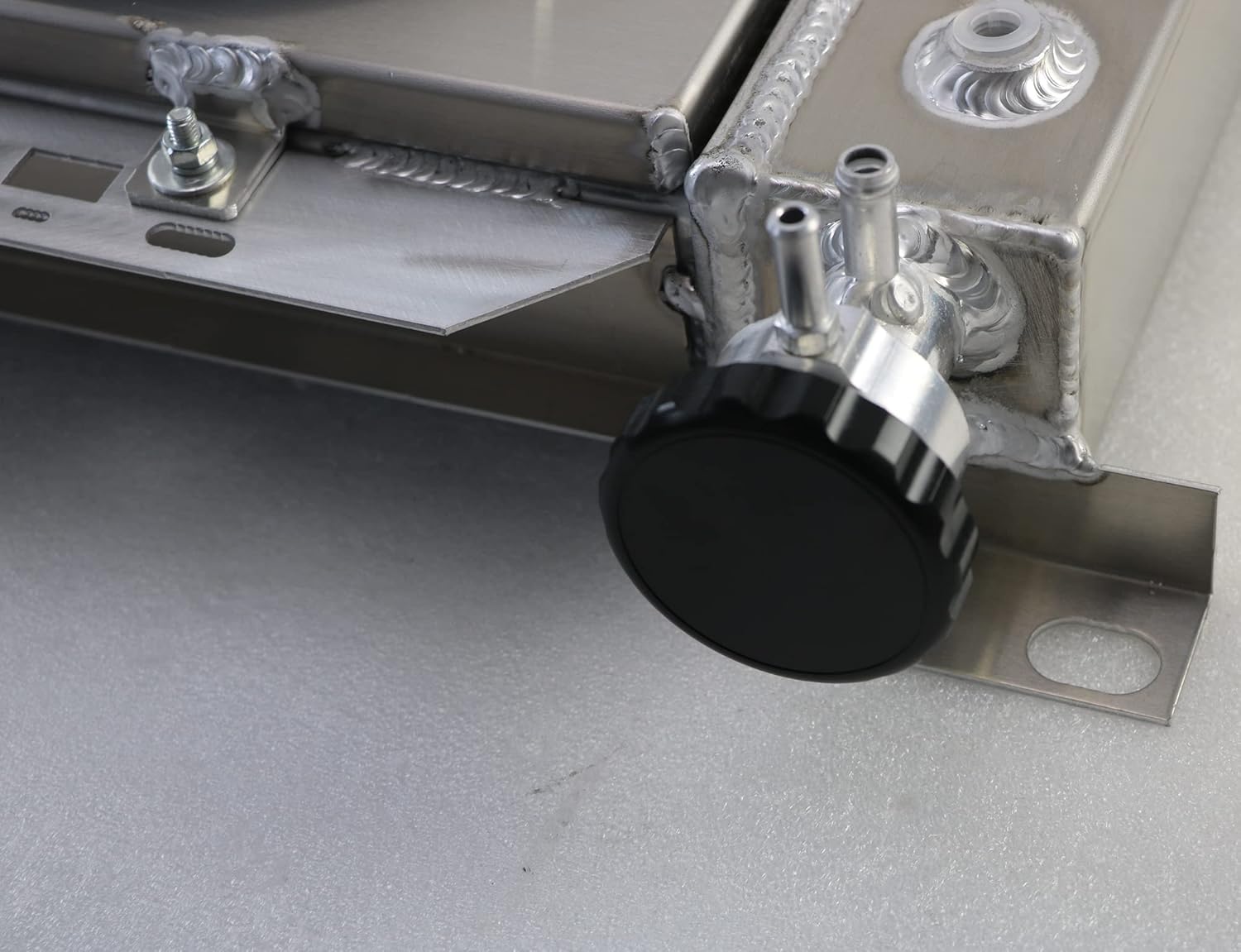

Radiator Cap: Included
Relay Kit Instructions:
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
12' Fan Spec:
Maximum Fan CFM: 2300±200
FAN Diameter: 12.05' X 12.05' X 2.5'
Number of Blades: 10 blades (Plastic)
Amp Draw: 12.70 amps
Maximum Fan RPM: 2,250 rpm
OEM/Substitute Numbers:
1451, 432183, 50378, 8011451, A1451, CU1451, E5TH8005AA, F2TZ8005KA, FO3010134, 2183, FD37003A, 432183, 9347, 892
This Radiator Compatible with:
1985-1996, Ford Bronco 5.0L V8 GAS
1985-1996, Ford Bronco 5.8L V8 GAS
1990-1997, Ford F Super Duty 7.3L V8 DIESEL
1990-1997, Ford F Super Duty 7.5L V8 GAS
1985-1996, Ford F150 5.0L V8 GAS
1985-1996, Ford F150 5.8L V8 GAS
1985-1997, Ford F250 5.0L V8 GAS
1985-1997, Ford F250 5.8L V8 GAS
1985-1996, Ford F250 7.5L V8 GAS
1985-1997, Ford F350 5.8L V8 GAS
1985-1997, Ford F350 7.5L V8 GAS
1988-1997, Ford F53 7.5L V8 GAS
PLS check more detailed vehicle information by AmazonConfirmedFit to confirm this radiator fit your vehicle before you order.
This aluminum radiator is big and easy got damaged during shipping, PLS contact us and offer us pics of damage details if the radiator or packing box arrived damaged. We resopnsible for this.
